Brûleurs de liquides

High-Performance Liquid Propane Burners for Demanding Industrial Applications

Our heavy-duty liquid burners are engineered for durability, power, and efficiency in the most demanding environments. Ideal for applications such as asphalt melting, crop drying, high-pressure water heating, and tar kettle use, each burner is constructed with SCH 80 steel pipe coil and rigorously tested for performance before shipping. Available in a range of sizes and heat outputs, from 300,000 to 2,000,000 BTU, our burners include straight and well-type models with optional gooseneck extensions to suit your specific jobsite needs.
Heavy-duty straight liquid burners designed for use with diesel or oil-fired heating systems

Small Straight Liquid Burners

Compact, efficient, and built to perform. These small straight burners are ideal for tight spaces and portable systems used in asphalt heating, agriculture, and industrial water heating. Each unit is constructed with SCH 80 coiled pipe and comes equipped with a left-hand thread needle valve.

Available Models:

  • FT1-3 – 300,000 BTU
  • FT1-5 – 500,000 BTU
  • FT1-7 – 700,000 BTU
  • FT1-9 – 900,000 BTU

Specifications

Model
FT1-3
FT1-5
FT1-7
FT1-9
Fuel Type
Liquid Propane
Liquid Propane
Liquid Propane
Liquid Propane
Heat Capacity
300,000 BTU/HR
500,000 BTU/HR
700,000 BTU/HR
900,000 BTU/HR
Gas Pressure
5-30 PSI
5-30 PSI
5-30 PSI
5-30 PSI
Structure
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
Needle Valve
LH Thread
LH Thread
LH Thread
LH Thread
Dimensions
12" x 3 1/2" x 6"
12" x 3 1/2" x 6"
12" x 3 1/2" x 6"
12" x 3 1/2" x 6"
Weight
4.75 LBS
4.75 LBS
4.75 LBS
4.75 LBS
Approvals
cULus
cULus
cULus
cULus

Manuals and Documents

Link to open manual

Link to open supporting document

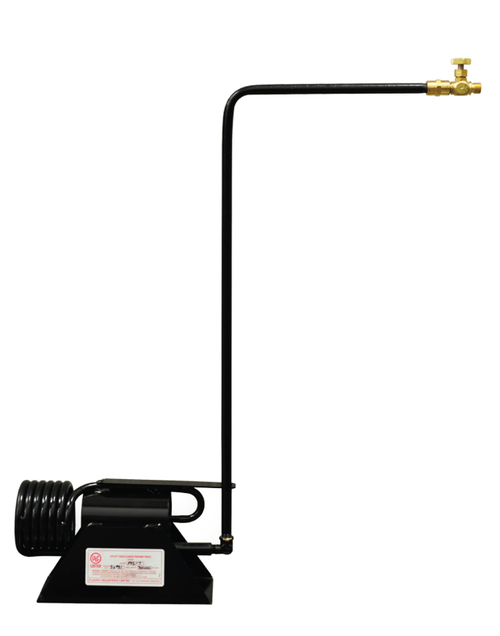

Heavy-duty well liquid burners designed for diesel and oil-fired heating applications

Small Well Liquid Burners

Purpose-built for tar kettle applications, these burners include a gooseneck extension for better integration and positioning. The SCH 80 coil ensures maximum durability and consistent performance in field conditions.

Available Models:

  • FT2-3 – 300,000 BTU
  • FT2-5 – 500,000 BTU
  • FT2-7 – 700,000 BTU
  • FT2-9 – 900,000 BTU

Specifications

Model
FT2-3
FT2-5
FT2-7
FT2-9
Fuel Type
Liquid Propane
Liquid Propane
Liquid Propane
Liquid Propane
Heat Capacity
300,000 BTU/HR
500,000 BTU/HR
700,000 BTU/HR
900,000 BTU/HR
Gas Pressure
5-30 PSI
5-30 PSI
5-30 PSI
5-30 PSI
Structure
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
Needle Valve
LH Thread
LH Thread
LH Thread
LH Thread
Gooseneck Extension
Included
Included
Included
Included
Dimensions
11" x 3 1/2" x 6"
11" x 3 1/2" x 6"
11" x 3 1/2" x 6"
11" x 3 1/2" x 6"
Weight
4.85 LBS
4.85 LBS
4.85 LBS
4.85 LBS
Approvals
cULus
cULus
cULus
cULus

Manuals and Documents

Link to open manual

Link to open supporting document

Heavy-duty straight liquid burners designed for use with diesel or oil-fired heating systems

Large Straight Liquid Burners

Built for serious industrial work, these large straight burners handle high-volume heat demands with ease. They are commonly used in large-scale asphalt melting, crop drying, and water heating operations.

Available Models:

  • FT4-10 – 1,000,000 BTU
  • FT4-15 – 1,500,000 BTU
  • FT4-20 – 2,000,000 BTU

Specifications

Model
FT4-10
FT4-15
FT4-20
Fuel Type
Liquid Propane
Liquid Propane
Liquid Propane
Heat Capacity
1,000,000 BTU/HR
1,500,000 BTU/HR
2,000,000 BTU/HR
Gas Pressure
5-30 PSI
5-30 PSI
5-30 PSI
Structure
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
Needle Valve
LH Thread
LH Thread
LH Thread
Dimensions
18" x 5 1/2" x 8"
18" x 5 1/2" x 8"
18" x 5 1/2" x 8"
Weight
9.25 LBS
9.25 LBS
9.25 LBS
Approvals
cULus
cULus
cULus

Manuals and Documents

Link to open manual

Link to open supporting document

Heavy-duty well liquid burners designed for diesel and oil-fired heating applications

Large Well Liquid Burners

Designed specifically for tar kettle systems requiring large BTU outputs, these well-type burners feature a gooseneck extension for easier installation and alignment. Heavy-duty SCH 80 coiled pipe ensures a long service life.

Available Models:

  • FT5-10 – 1,000,000 BTU
  • FT5-15 – 1,500,000 BTU
  • FT5-20 – 2,000,000 BTU

Specifications

Model
FT5-10
FT5-15
FT5-20
Fuel Type
Liquid Propane
Liquid Propane
Liquid Propane
Heat Capacity
1,000,000 BTU/HR
1,500,000 BTU/HR
2,000,000 BTU/HR
Gas Pressure
5-30 PSI
5-30 PSI
5-30 PSI
Structure
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
SCH 80 Pipe Coiled Head
Needle Valve
LH Thread
LH Thread
LH Thread
Gooseneck Extension
Included
Included
Included
Dimensions
17" x 5 1/2" x 8"
17" x 5 1/2" x 8"
17" x 5 1/2" x 8"
Weight
9.25 LBS
9.25 LBS
9.25 LBS
Approvals
cULus
cULus
cULus

Manuals and Documents

Link to open manual

Link to open supporting document
